Name: Max Speed 105kmH Dynamic Weighing WIM System Vehicle Overload Detection
Brand: Hengliang
Price: 20000 USD

Brand Name : Hengliang

Model Number : ZQS-40-SY

Certification : ISO

Place of Origin : Zhenghou`China

MOQ : 1 SET

Price : USD 20000-35000/SET

Payment Terms : T/T

Supply Ability : 30 SET/Month

Delivery Time : 5~7days

Packaging Details : Wooden box

Type : High Speed Weight In Motion

Voltage : AC 220V

Weighing accuracy : 90%~97%

Max speed : 0.5~105km/h

Single axle load : 40T

Max load : 60T (single axle)

Division value : 50kg

MTBF : ≥20000h

Working temperature range : -45~+80℃

Protection level : IP68

Contact Now

Max Speed 105km/H Dynamic Weighing System For Vehicle Overload System

Product Function

The overall functions of the system are as follows:

It has the functions of dynamic detection and output of vehicle model, number of axles, axle load and total weight of the whole vehicle.
It has the function of vehicle license plate recognition and output.
It has the functions of vehicle video recording and output.
It has the functions of vehicle image capture and output.
It has the functions of vehicle overrun information and notification, release and display.
It has the functions of speed and flow detection and output.
It has the functions of detection, discrimination and output of abnormal driving behavior of freight vehicles.

Product Parameters

Weighing accuracy	90%~97%
Single axle load	40Ton
Max Load	60Ton
Speed	0.5~105km/h；
Speed error	≤±1km/h
Wheelbase error	≤±100mm
Working voltage	AC 220V 50Hz
Output information	Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes	8 lanes
Data storage	It can store up to 10000 pieces of vehicle information data
data interface	RJ485
work environment	-45℃～80℃,0～95%
Confidence	≥95%

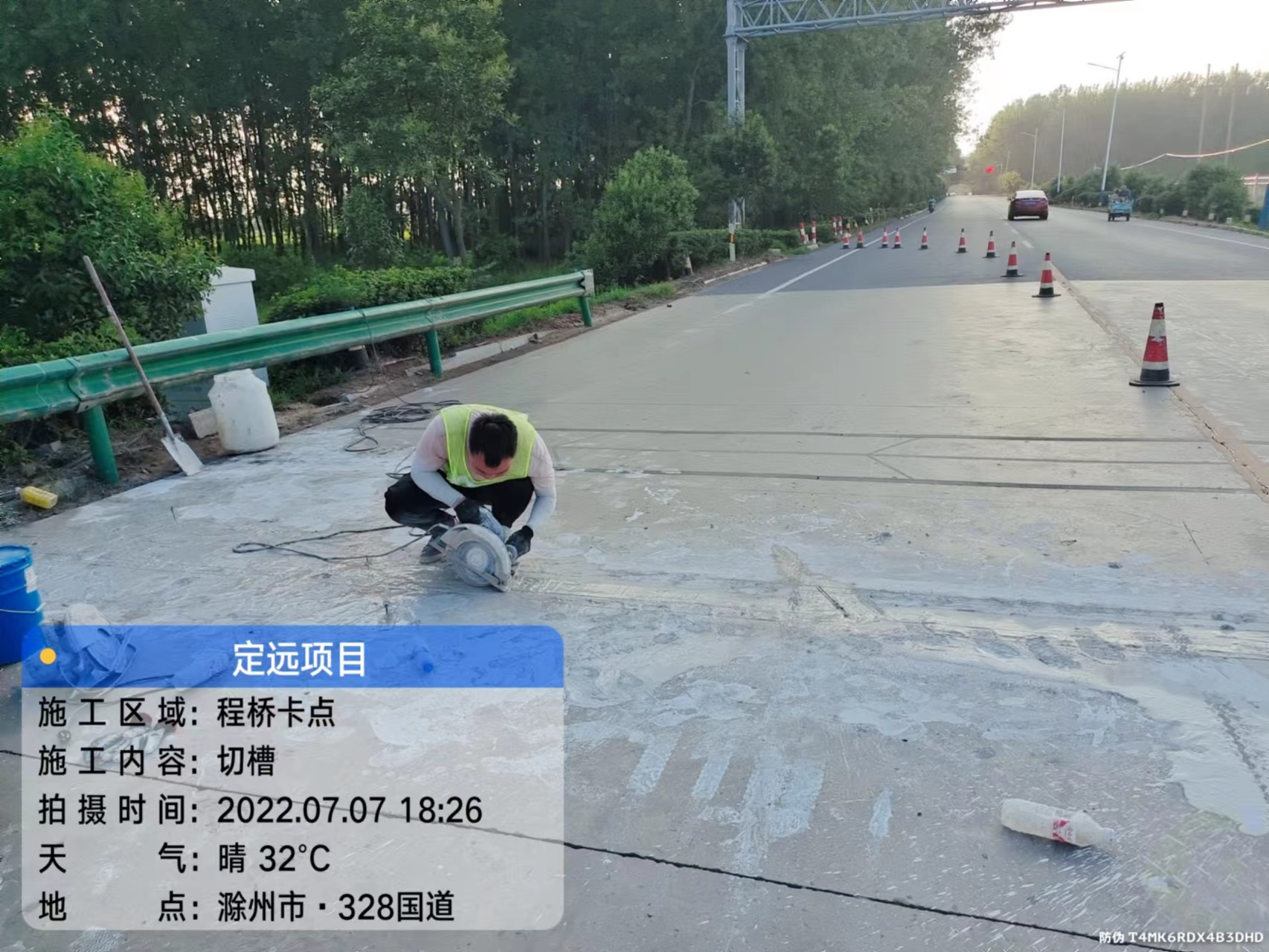

Project Case

Max Speed 105km/H Dynamic Weighing WIM System Vehicle Overload Detection
